Sungai Buloh MRT Station

The Sungai Buloh MRT Station is an MRT station serving the suburb of Sungai Buloh in Selangor, which is located to the northwest of Kuala Lumpur. This MRT station is the northern terminus of the MRT Sungai Buloh – Kajang Line service.

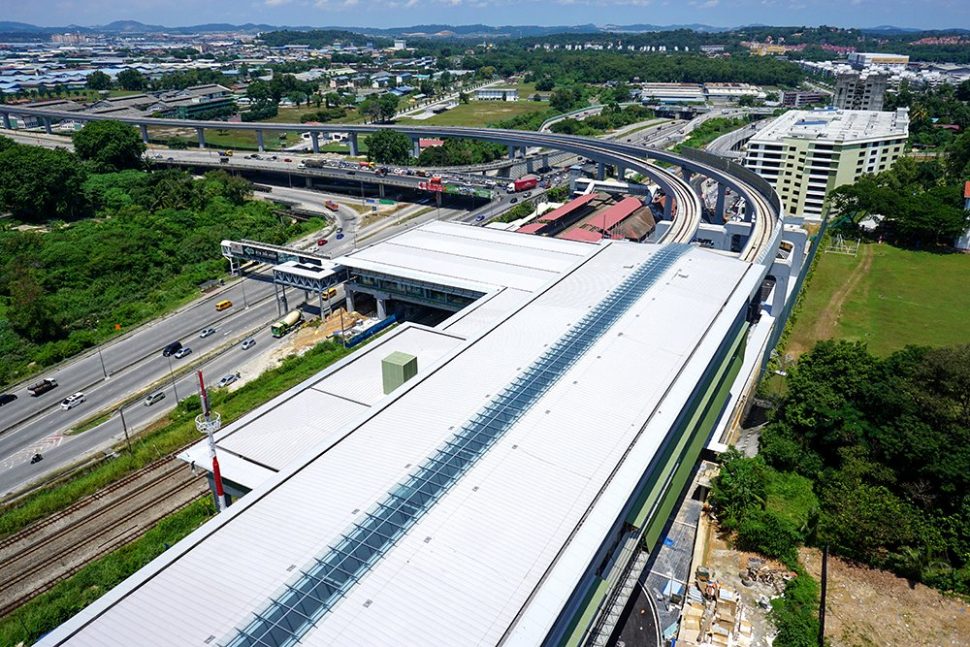

View of the Sungai Buloh MRT Station (white roof) with the common concourse with the Sungai Buloh KTM Station (red roof). Sep 2016

View of the Sungai Buloh MRT Station (white roof) with the common concourse with the Sungai Buloh KTM Station (red roof). Sep 2016


The MRT station is hosted within the Sungai Buloh railway station as the railway station is an interchange station, with one section catering to the KTM Komuter and KTM ETS services, and another section for the MRT Sungai Buloh-Kajang Line.

View of the Sungai Buloh MRT Station (left) located next to the KTM train tracks (right). Apr 2016

View of the Sungai Buloh MRT Station (left) located next to the KTM train tracks (right). Apr 2016

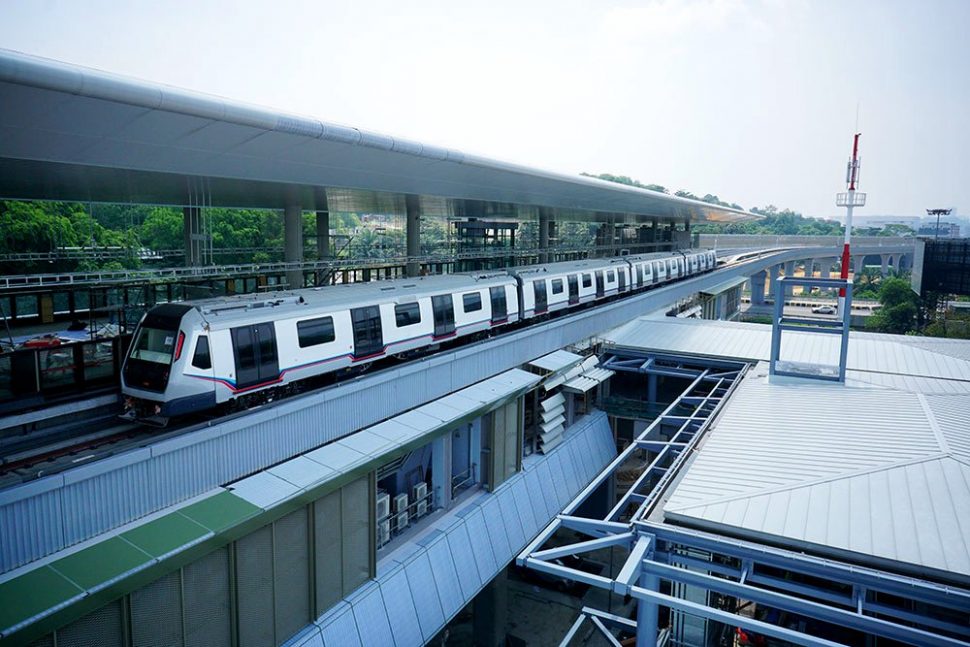

View of the train undergoing testing at the Sungai Buloh Station. Apr 2016

View of the train undergoing testing at the Sungai Buloh Station. Apr 2016

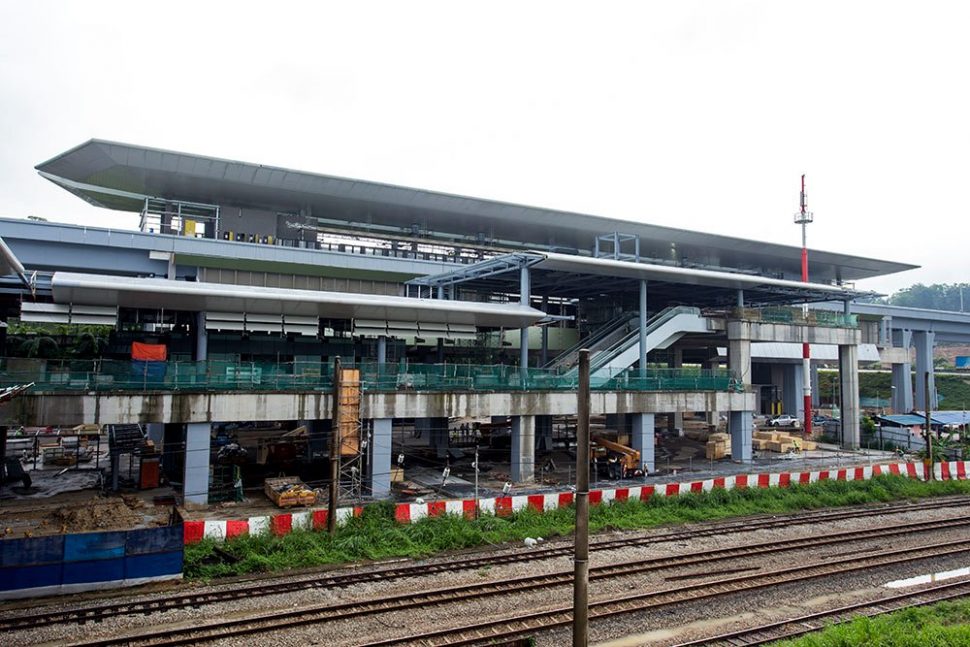

The MRT Sungai Buloh Station (left) next to the KTM Sungai Buloh Station (right). May 2016

The MRT Sungai Buloh Station (left) next to the KTM Sungai Buloh Station (right). May 2016


Station Design

The Sungai Buloh station is an elevated station structure with an elevated common concourse linking the MRT paid area with the KTM paid area. The integrated station was constructed as part of the MRT Sungai Buloh-Kajang Line.

The ticket vending machines and ticketing offices for both MRT and KTM services, as well as two retail outlets, are located at this common concourse. The concourse was constructed over the four KTM tracks.

From this common concourse, stairs, escalators, and lifts descend from within the KTM paid area beyond the fare gates to the two at-grade side platforms.

After passing the MRT fare gates, stairs, escalators, and lifts bring passengers up to the MRT concourse level and then a further level up to the single island platform of the MRT Sungai Buloh-Kajang Line.

The main entrance (Entrance A) consists of escalators, stairs, and lifts rising from at-grade level to the common concourse, serving both MRT and KTM users. Another entrance (Entrance B) is located on the south side of the common concourse and is linked to a staircase down to the Kuala Lumpur-bound side of Jalan Kuala Selangor, as well as a pedestrian overhead bridge across Jalan Kuala Selangor for access to the Kuala Selangor-bound side of the road.

At the at-grade level of the station are the feeder bus station, lay-byes for taxis and private-vehicles as well as parking for the disabled were built as part of the construction of the MRT station.

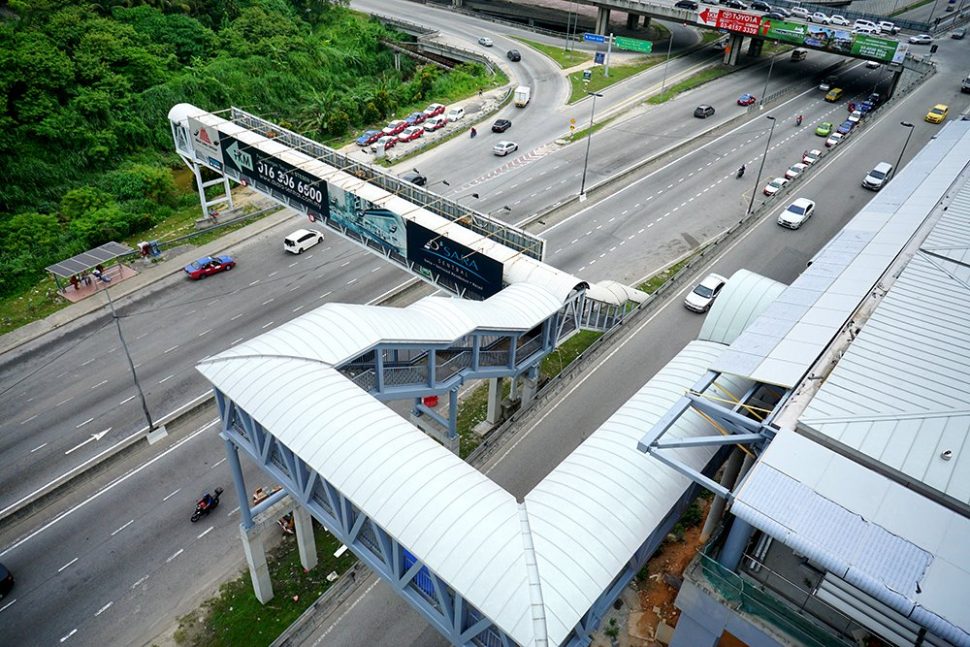

Aerial view of the pedestrian entrance bridge that leads towards the entrance of the Sungai Buloh Station. Jun 2016

Aerial view of the pedestrian entrance bridge that leads towards the entrance of the Sungai Buloh Station. Jun 2016

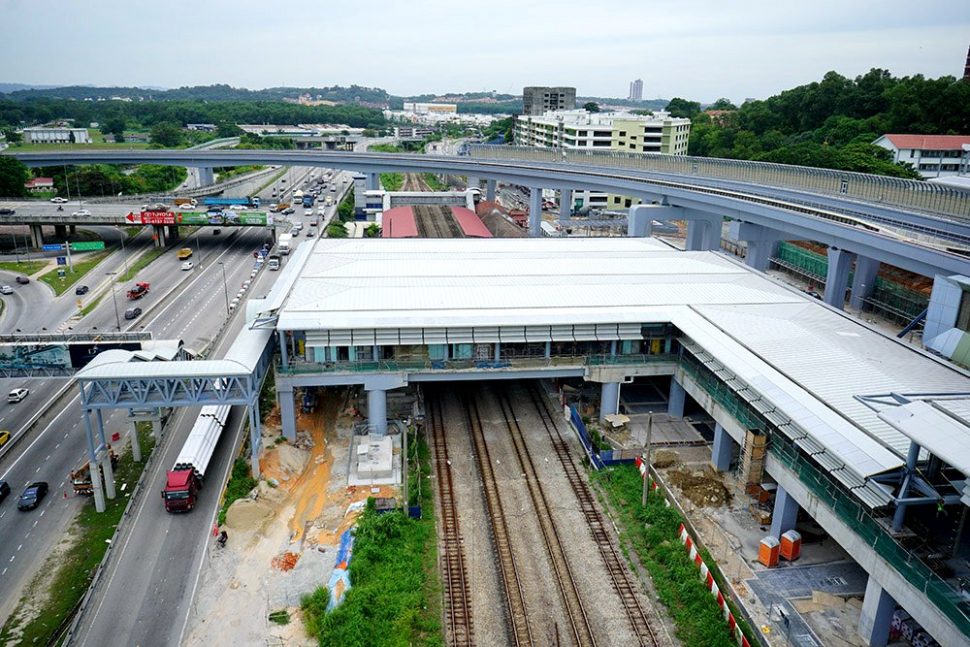

View of the completed common concourse linking both the Sungai Buloh MRT Station with the KTM Komuter Station. Jun 2016

View of the completed common concourse linking both the Sungai Buloh MRT Station with the KTM Komuter Station. Jun 2016


Station Layout

Level Description
MRT platform level (L3)
  • Platform 1: Sungai Buloh–Kajang Line towards Kajang
  • Platform 2: Sungai Buloh–Kajang Line Terminus
MRT concourse (L2) Escalators up to MRT platforms, Escalators down to Common Concourse, Toilets, MRT station machinery rooms
Common concourse (L1) Faregates to MRT paid area, Escalator and lifts up to MRT Concourse Level, Faregates to KTM paid area, Escalators and lifts down to KTM platforms, Ticketing Machines for MRT and KTM, Customer Service Office for MRT and KTM, Station Control for MRT and KTM, Shops, Entrance A escalator and lifts down to Ground Level street side area, Entrance B with pedestrian bridge over Jalan Kuala Selangor and staircase down to road level (Jalan Kuala Selangor Kuala Lumpur-bound).
KTM platform area (G)
  • Platform 1: Port Klang Line towards Port Klang
  • Platform 2: Port Klang Line towards Tanjung Malim
Street side area (G) Entrance A escalators and lifts up to Common Concourse, Feeder Bus Terminal, taxi lay-by, kiss and ride lay-by, staff parking, walkway to multi-storey park and ride building

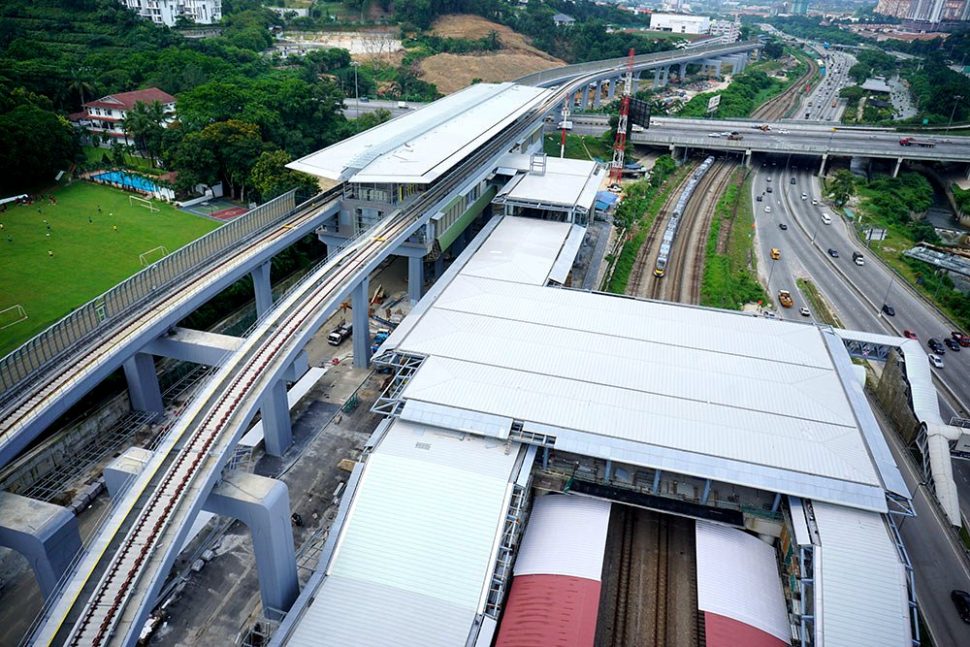

The MRT Sungai Buloh Station which is located next to the KTM train tracks. May 2016

The MRT Sungai Buloh Station which is located next to the KTM train tracks. May 2016

View of the completed Sungai Buloh MRT Station with the common concourse with the Sungai Buloh KTM Station over the KTM tracks. Also seen is an MRT train undergoing testing. Nov 2016

View of the completed Sungai Buloh MRT Station with the common concourse with the Sungai Buloh KTM Station over the KTM tracks. Also seen is an MRT train undergoing testing. Nov 2016


Location

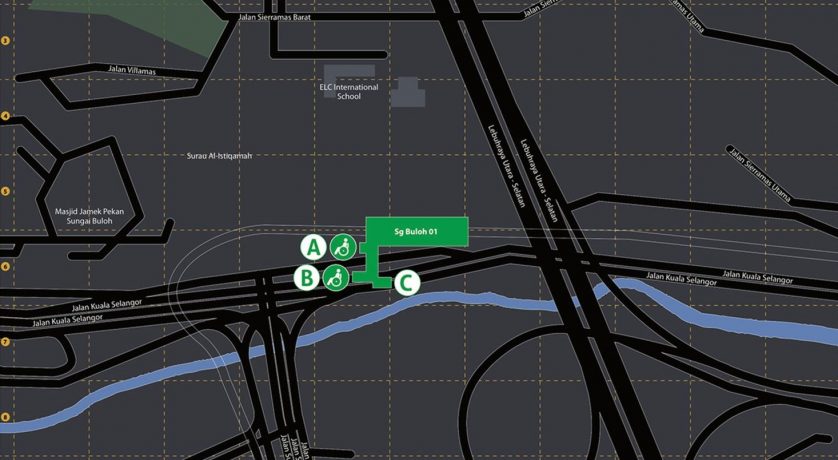

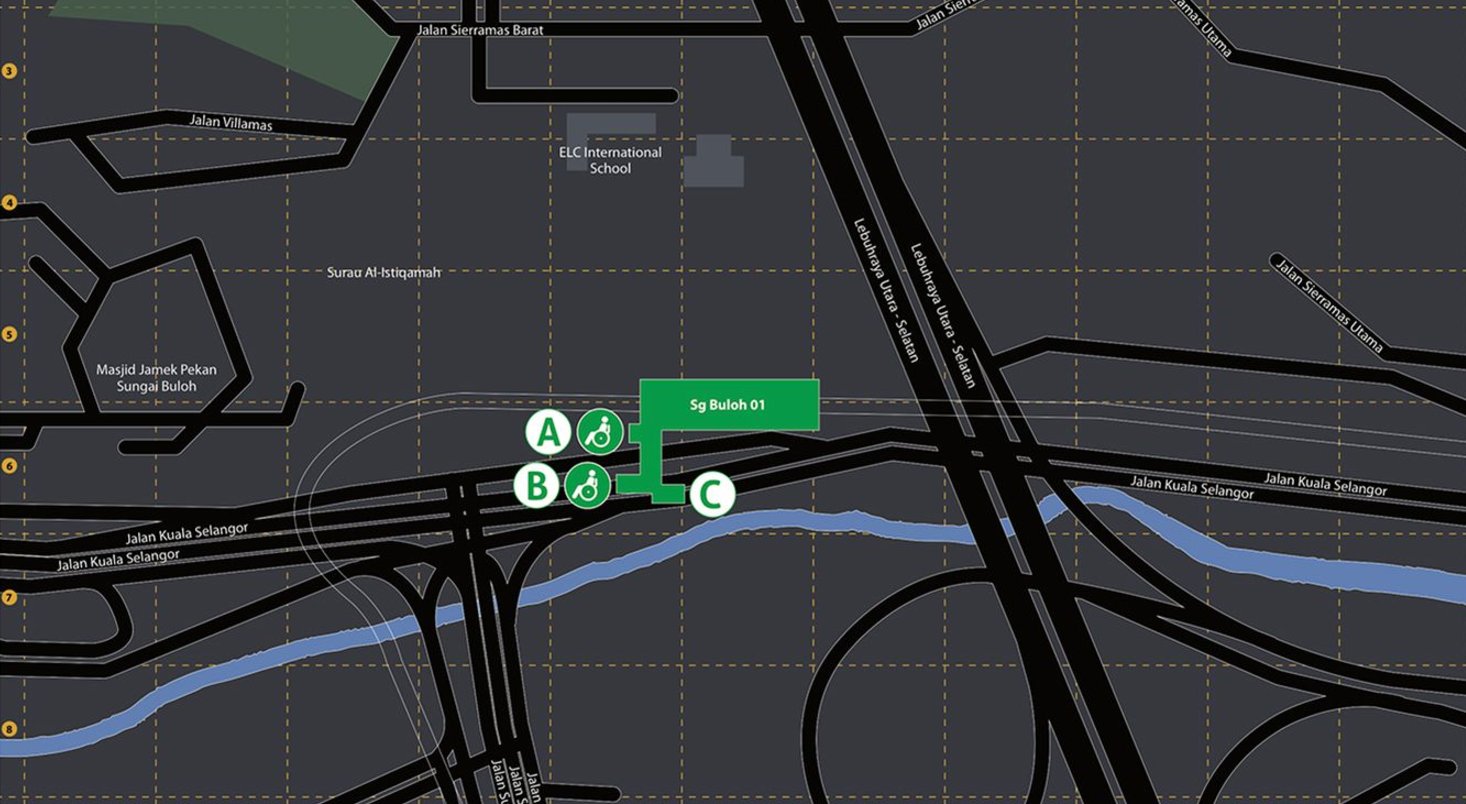

Location of Sungai Buloh MRT Station

Location of Sungai Buloh MRT Station

Facilities

  • Feeder Bus
  • Lift
  • Escalator
  • Bicycle Parking
  • Public Telephone
  • Ticket Vending Machine
  • Public Toilets
  • Park and Ride
  • Surau
  • Side Platform
  • Customer Service Office

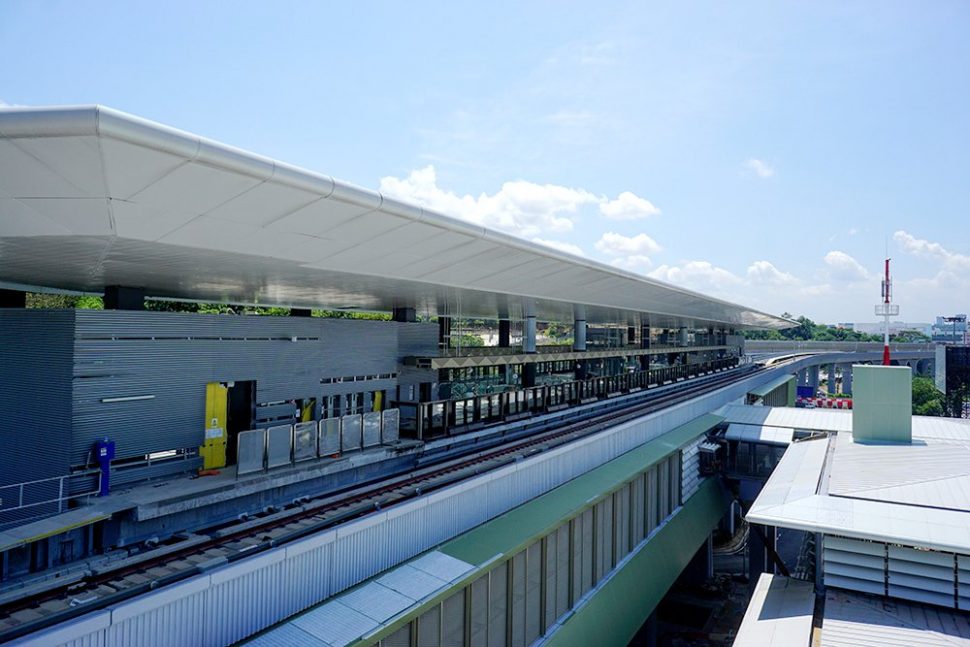

View of the platform level of the Sungai Buloh MRT Station. Sep 2016

View of the platform level of the Sungai Buloh MRT Station. Sep 2016

The escalators and stairs at the concourse level of the Sungai Buloh Station. Dec 2016

The escalators and stairs at the concourse level of the Sungai Buloh Station. Dec 2016


Feeder Bus Services

With the opening of the MRT Sungai Buloh-Kajang Line, feeder buses also began operating linking the station with several housing areas and villages in and near Sungai Buloh. The feeder buses operate from the station’s feeder bus hub accessed via Entrance A of the station.

Bus Service Route Via
T100 Sungai Buloh station to/from Hospital Sungai Buloh, UiTM Sungai Buloh Jalan Hospital, Hospital Sungai Buloh, UiTM Sungai Buloh
T101 Sungai Buloh station to/from Bukit Rahman Putra Jalan Hospital, Jalan Kusta, Kampung Melayu Sungai Buloh, Persiaran Bukit Rahman 3, Persiaran Bukit Rahman Putra 1, Jalan Besar Bandar Baru Sungai Buloh, Jalan Kuala Selangor
T102 Sungai Buloh station to/from Kampung Paya Jara, Kubu Gajah Jalan Kuala Selangor, Jalan Paya Jaras Tengah, Jalan Kubu Gajah
T103 Sungai Buloh station to/from Damansara Damai Jalan Kuala Selangor, Jalan PJU 10/1

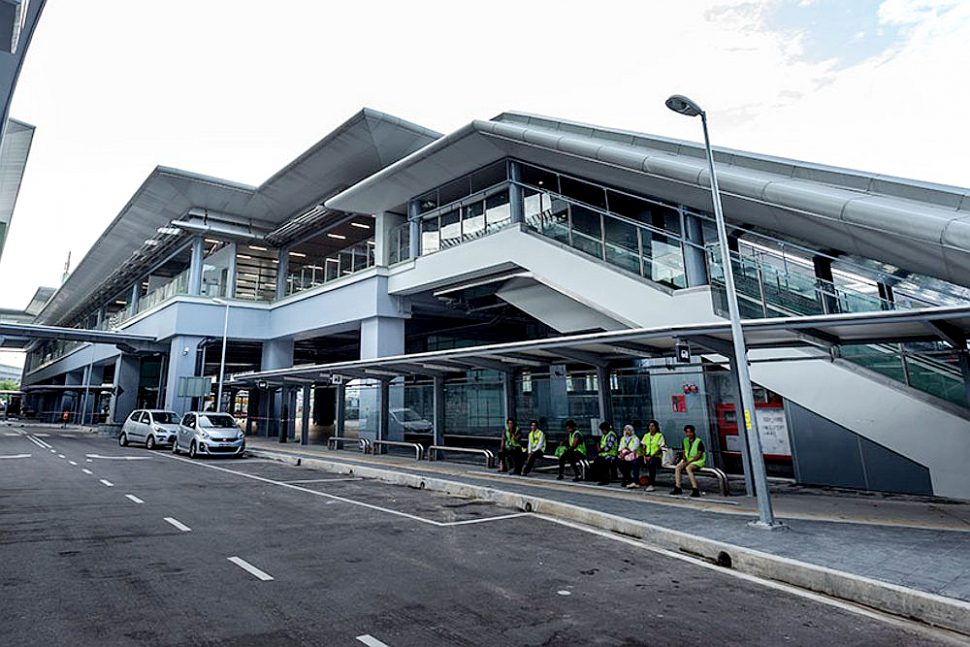

The passenger layby at the Sungai Buloh Station. Dec 2016

The passenger layby at the Sungai Buloh Station. Dec 2016


Pictures of Sungai Buloh MRT Station During Construction

The Sungai Buloh KTM Station was already in existence at the location and the new MRT station was constructed next to it, occupying what was previously the at-grade open air car park. The MRT section and common concourse of the station, which is partially over KTM tracks, was built while the KTM station remained in operations throughout the construction period.

With the completion and opening of the new integrated station, the KTM station structure was dismantled. The KTM ticketing office and other offices were relocated from the original station to the common concourse.

The original platforms were retained and redesigned to enable access to the common platforms, instead of to the previous at-grade exit on the northern platform. The KTM tracks were not modified for the renovation.

Aerial view of the pedestrian bridge connecting the Sungai Buloh KTM and MRT stations. Apr 2016

Aerial view of the pedestrian bridge connecting the Sungai Buloh KTM and MRT stations. Apr 2016

The escalators leading up to the MRT station from the KTM for commuters. Apr 2016

The escalators leading up to the MRT station from the KTM for commuters. Apr 2016

Construction at the concourse level of the Sungai Buloh Station in progress. Mar 2016

Construction at the concourse level of the Sungai Buloh Station in progress. Mar 2016

Ongoing works of the link between the Sungai Buloh KTM Komuter (left) and MRT Station (right). Mar 2016

Ongoing works of the link between the Sungai Buloh KTM Komuter (left) and MRT Station (right). Mar 2016

Escalator being installed inside the Sungai Buloh Station. Feb 2016

Escalator being installed inside the Sungai Buloh Station. Feb 2016

Construction at the concourse level of the Sungai Buloh Station in progress. Feb 2016

Construction at the concourse level of the Sungai Buloh Station in progress. Feb 2016

The common concourse of the Sungai Buloh KTM Station (red roof) and the Sungai Buloh MRT Station (left) taking shape. Jan 2016

The common concourse of the Sungai Buloh KTM Station (red roof) and the Sungai Buloh MRT Station (left) taking shape. Jan 2016

View of the completed MRT guideway crossing over Jalan Kuala Selangor. Jan 2016

View of the completed MRT guideway crossing over Jalan Kuala Selangor. Jan 2016

The view from the Sungai Buloh KTM Station of the common concourse level being constructed. Jan 2016

The view from the Sungai Buloh KTM Station of the common concourse level being constructed. Jan 2016

View of the Sungai Buloh Station and the common concourse level of the station. Jan 2016

View of the Sungai Buloh Station and the common concourse level of the station. Jan 2016
